Airlay

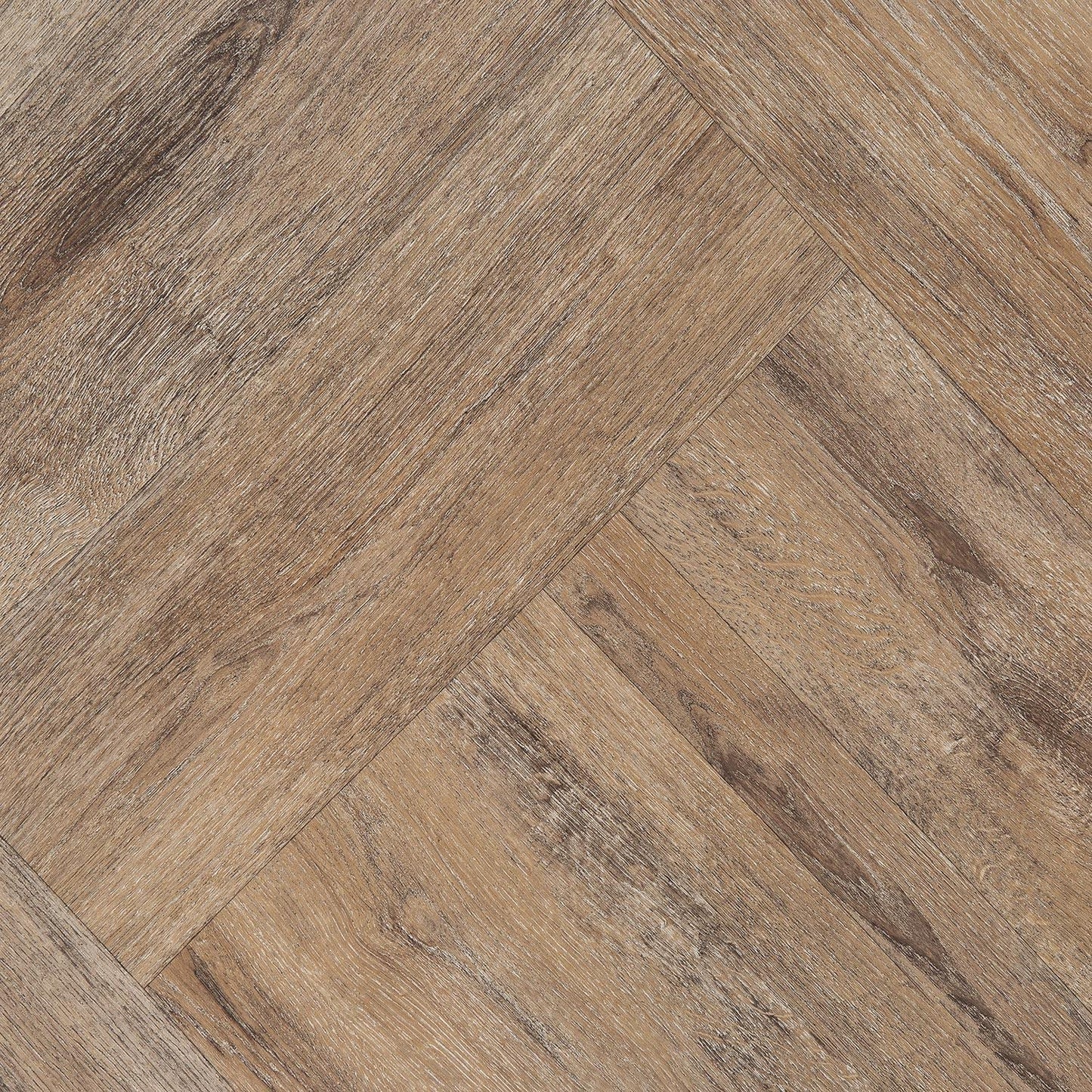

Manor 500x500

Manor 500x500

Manor 500x500 is sold per box

Each box contains 3.25 m2

$35.05 AUD
$35.05 AUD
Sale Sold out
Tax included.

Tile Size: Length: 500mm x Width: 500mm x Thickness: 3.0mm

Product Specifications

TECHNICAL SPECIFICATIONS

  • Luxury Vinyl Tiles: EN649/EN ISO 10582 - Heterogeneous PVC
  • Overall Thickness: EN428/ISO 24346 - mm 3.0
  • Wear Layer Thickness: EN429/ISO 24340 - mm 0.55 (±0.05)
  • Tile Size 1: EN 427/ISO 24342 - mm 500x500
    Tiles/Meterage per box: 13 pcs, 3.25m2/box
  • Tile Size 2: EN 427/ISO 24342 - mm 600x600
    Tiles/Meterage per box: 9 pcs, 3.24m2/box

CLASSIFICATION

  • Classification: EN685/ISO 10874 - class:
    • Commercial: 33.
    • Industrial: 42
  • Fire rating: AS ISO 9239-1 - ≥8 kW/m2
  • Slip Resistance:
    • AS 4586 - class R10
    • DIN 51130 - class R10

PERFORMANCE SPECIFICATIONS

  • Abrasion Resistance: EN660-2 - Group T
  • Dimensional Stability: EN660-2 EN434/ISO 23999 - % ≤ 0.25%
  • Residual Indentation: EN433/ISO 24343:1 - mm Ave. Value ≤ 0.1mm
  • Electrical Resistance:
    • EN 1815 - Kv <2KV
    • EN 1081 - >109 Ω
  • Colour Fastness: EN ISO - 105 - B02 - degree ≥6 degree
  • Chemical Resistance: EN 423/ISO 26987. - Good Resistance
  • Castor Wheel Test: EN 425/ISO 4918 - Suitable



SUSTAINABILITY SPECIFICATIONS

  • Underfloor Heating: Suitable - Max. 27°C
  • VOC Emissions:
    • Floor Score/SCS - Indoor Airlay Quality Certified
    • SCS-EC10.3-2014v4.0 - Pass, Low VOC Emissions
  • Quality Control: ISO 9001:2000 - certified
  • Management: ISO 14001:2004 - certified

----
